SuperconductorCopper-toned patterns, specific parts
Look at the pattern, then identify where superconductor material is used.
In EDC, “superconductor” is first a material name. It can appear on a watch-strap buckle or in several structural parts of a slider. Copper and silver tones, the choice of stock and the surface finish shape the result.
This atlas begins with a buckle, Ganggu and Tuji, then looks at etching choices and plates made from other materials. Low-temperature superconducting applications are kept separate from room-temperature handling, and makers’ stock descriptions are not treated as standard grades.

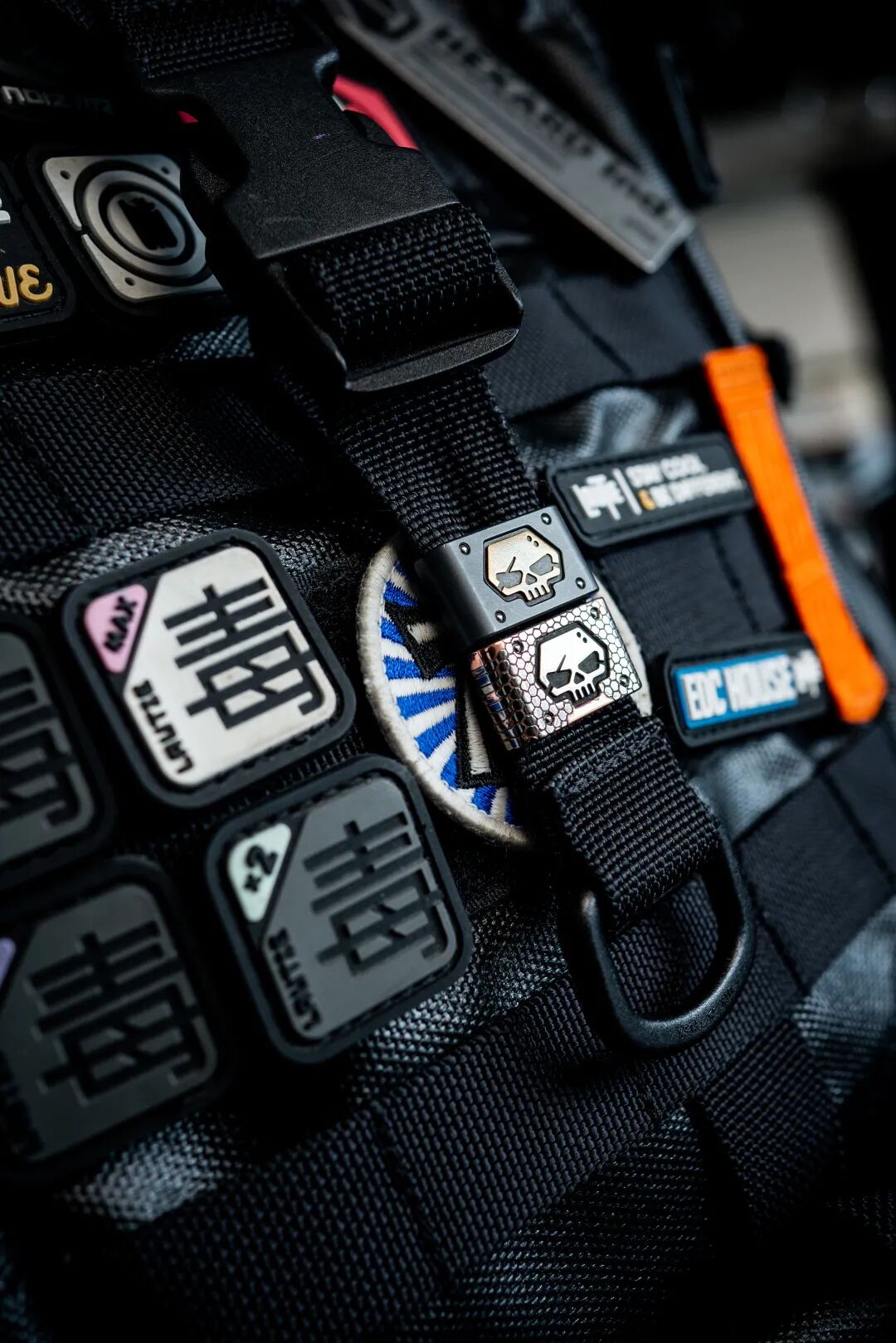

A close-up of LAUTIE’s fine-filament superconductor LSP buckle. The dense pattern around the motif shows the stock and finish used for this release.
Cross-sectional patterns on the wrist
An LSP superconductor buckle in use on a watch strap. The strap, watch and other components are not thereby identified as the same material.
Cross-sectional patterns on the wrist
LAUTIE’s LSP (Lautie Super Player) series presents the material as a watch-strap buckle. The maker explicitly says its EDC appeal lies in the changing patterns and the relief produced by acid etching, rather than in superconducting performance. In the close-up, copper- and silver-coloured cells surround the central motif; the wrist photograph shows this as a detail on a watch strap.
This release used stock described by the maker as fine-filament superconductor. After rejecting flawed pieces, the maker produced 80 buckles. It tied that number to this batch of stock and its cross-sectional pattern, noting that patterns can vary between batches. The 80-piece figure belongs to this release; it does not establish a universal production limit for superconductor EDC.
Fine-filament material across four structural parts
Fine-filament superconductor Ganggu: the maker individually identifies the spine, base support, core and ribs as fine-filament superconductor.
Fine-filament material across four structural parts
Wanwu Lezhi’s fine-filament superconductor Ganggu uses the material in four named components: the spine, base support, core and ribs. In the hand-held photograph, elongated lines follow the shape, while the edges and central structure reveal different pattern directions. This contrasts with the dense dotted appearance of the LSP buckle.
The material assignment follows those four components. The product name Ganggu does not establish that it is steel, nor does the article identify every screw or ball as superconductor. The maker also says the demonstration video used nylon balls in its tracks and detent grooves to protect the surface, rather than the final feel configuration. This atlas uses still photographs and does not assess the finished product’s sliding feel from that demonstration.
A full-filament appearance and the choice of stock
ACEdc’s full-filament superconductor Tuji. The maker selected large-diameter stock for the pattern; a black fastener remains visible at the centre.
A full-filament appearance and the choice of stock
ACEdc describes this Tuji as a full-filament superconductor version and says it selected large-diameter stock for that visual effect. The photograph shows a dense dotted pattern across the rabbit-shaped exterior, with a black fastener still visible at the centre. Full-filament does not mean a surface without openings or a product whose every component uses the same material.
Look beyond the pattern itself to how the maker selects a portion of the stock and fits it to the product’s shape. Fine-filament, full-filament and wanmu are stock or appearance descriptions used in these articles. No common inspection standard is supplied, so the names alone cannot establish actual filament diameters or counts.
One material name, several surface treatments
GD EDC’s superconductor Jiaodoushi (Gladiator) offered two surface options: a recessed-pattern form with polishing and light acid etching, and a flat form with medium acid etching. The maker also described selecting 62 mm diameter stock, cutting away irregular patterns at the edge and positioning a small internal copper core beneath an inlay. The 62 mm figure is the stock diameter, not the finished product’s width.
Stock selection and surface treatment both shape the appearance. Recessed and flat forms, and light and medium etching, describe this particular product. The article gives no etch-depth parameters that would make those terms comparable across brands.
Yijie Wanjia’s Meidusha (Medusa) showed heat-coloured and acid-etched, polished superconductor finishes. The announcement said matching superconductor buttons for the polished version would come later. Its sample photograph therefore does not establish that those buttons were already made from the same material.
The superconductor version and its separate plates
Metal Toys Dz’s superconductor Top-C comes with a zirconium-alloy squeak plate and a stainless-steel detent plate in addition to the body. Superconductor defines an important part of this version, while the accompanying plates make it a mixed-material set.
Within one product, the patterned exterior, structural parts and contact plates may use different materials. Match the component descriptions individually to understand the configuration.
Copper, niobium-titanium and the superconducting state
LAUTIE describes its stock in terms of copper, titanium and niobium, while the Top-C article calls it copper-based titanium-niobium superconductor. Technical material references provide a more specific structural explanation: CERN describes niobium-titanium filaments in accelerator-magnet conductors as usually embedded in a copper matrix. This is a conductor made of distinct constituents, rather than copper, titanium and niobium all forming one uniform alloy.
Superconductor is not the operating state of these EDC objects at room temperature. Bruker classifies NbTi wire as a low-temperature superconductor and describes operation at 4.2 K. CERN explains that LHC magnets are maintained at 1.9 K to reach a superconducting state. These are conditions for the cited engineering applications, not measured temperatures or performance for the EDC products here.
The product articles do not disclose a common chemical ratio, copper grade or stock supplier. The technical references explain the background; they do not show that these objects came from a particular MRI machine, manufacturer or batch of stock. Their everyday appeal is in the visible pattern, finish and material combination, rather than a zero-resistance function.
